Perception Neuron 3 Firmware Upgrade

Introduction

Firmware updates will be released from time to time to help improve user experience. Updates will be made available through Axis Studio. You'll find several ways to update the firmware. Make sure have your sensors fully charged before proceeding.

Open

Sensor firmware can be updated from the following two options

Option #1

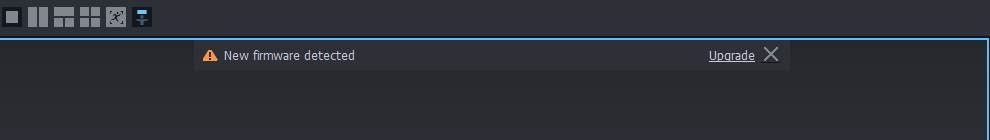

Axis Studio will display a prompt New firmware detected


Option #2

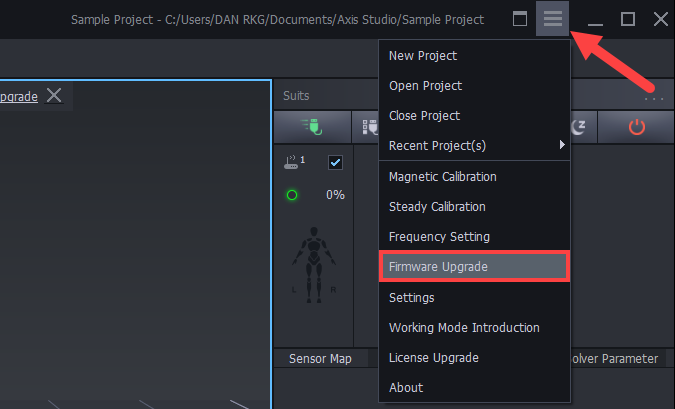

Navigate to the Main Menu>Firmware Upgrade


Select any options to open the Upgrade Firmware window

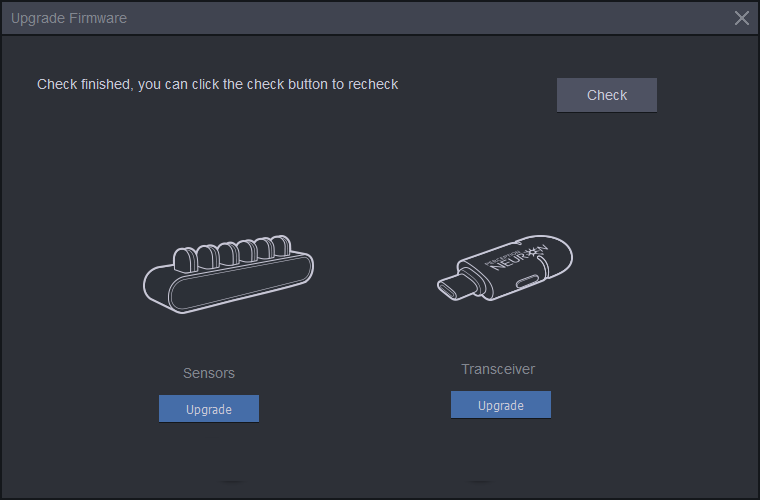

Firmware Update

In the firmware update window, Axis Studio will review the connected devices' firmware. If an upgrade is available, you'll see the Upgrade options available. Start by updating the sensors first and then proceed by updating the transceiver.

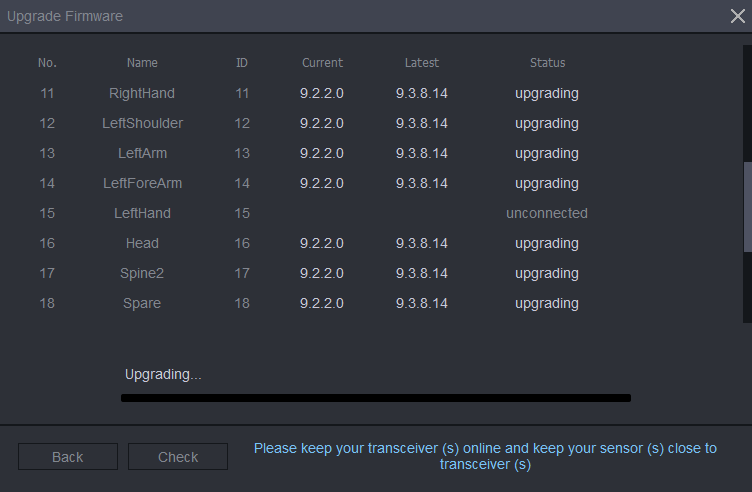

Allow Axis Studio to perform the update
