Cinema 4D Real-time Streaming

Requirements

  • Maxon Cinema 4D r23 or higher
  • Windows x86_64

Software Setup

Axis Studio Settings

Click Main Menu --> Settings --> BVH Broadcasting

  • Enable Capture for live data or Edit for prerecorded data.
  • Skeleton: Axis Studio
  • Enable Displacement
  • Coordinate System: NUE
  • Protocol: UDP
  • Local Address: 127.0.0.1:7003
  • Destination Address: 127.0.0.1:7001


  • Click OK to apply the settings

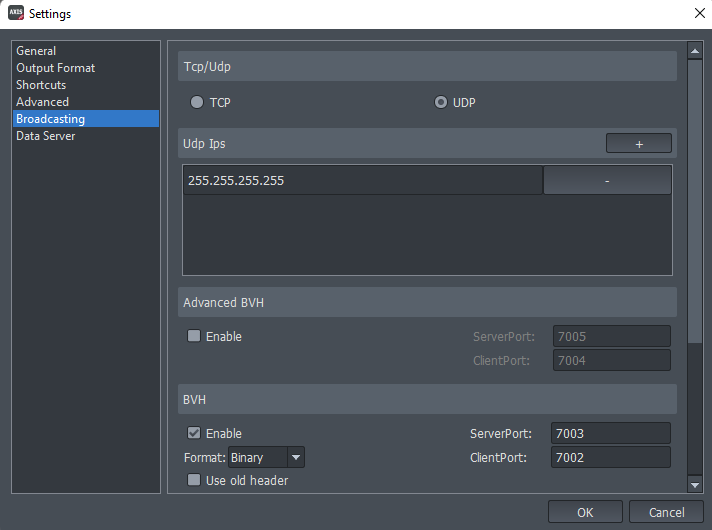

Axis Neuron/Axis Neuron Pro Settings

  • Click File --> Settings
    • Output Format
      • Displacement: Enabled
    •  Broadcasting
      • Protocol: UDP
      • Udp Ips: 255.255.255.255
      • BVH:  Enabled
        • Serverport: 7003
        • ClientPort: 7002 (port used for C4D plugin)


  • Click OK to apply the settings.

Installation

  • Download the Cinema 4D Plugin here: Neuron Mocap Live for C4D
  • In Cinema 4D, go to Edit --> Preferencesmceclip0.png
  • Click Open Preferences Folder...mceclip1.png

  • Unzip the plugin package in the C4D plugins folder

  • Restart Cinema 4D and go to Extensions --> Neuron Mocap Livemceclip2.png

Neuron Mocap Live Setup

In C4D go to Extensions --> Neuron Mocap Live

  • Protocol: UDP or TCP
  • IP:
    • UDP: Use 255.255.255.255 or 127.0.0.1
    • IP: Use 127.0.0.1 or the static IP
  • Port
    • Axis Studio: Destination Address
    • Axis Neuron/Pro: ClientPort
  • Skeleton:
    • Axis Studio - PN Studio/ PN3,
    • Axis Legacy - PN Pro / PN32


  • Create Skeleton
  • The Name listed under Character should match the Character Name in the Sensor Map in Axis Studio/Axis Neuronmceclip2.png
  • Click Connect to start streaming
    • mceclip3.png

Import a custom character

  • Go to File --> Merge Project, and select your character


  • Click OK


  • Click No


  • Right click on the skeleton and select Neuron Mocap Live


  • Click on Detect Joints Map, check that everything remapped properly


  • Make sure the Name matches the name of the Axis Studio data


  • Click on the thumb and change R.H to 30 and R.P to -40 or whatever creates this pose for your character


  • Click Set T-Pose


  • Enable Scale Root Position


  • Click Connect
