Perception Neuron Studio Hardware List

Body Kit


1 x Charging Case


1 X Studio Transceiver


14 X Body Strap


17 X Body Sensors

1 X Spare sensor
  • Charging Case: Case for charging and storing sensors.
  • PN Studio Transceiver  All sensor data will broadcast to the transceiver wirelessly by 2.4GHz.The antenna is linked to the transceiver to enhance the power.
  • Body Straps: 14 set of straps to mount Perception Neuron Studio sensors around your body.
  • PN Studio sensor: Wireless MEMS inertial sensor. Gyroscope, accelerometer and magnetometer integrated.

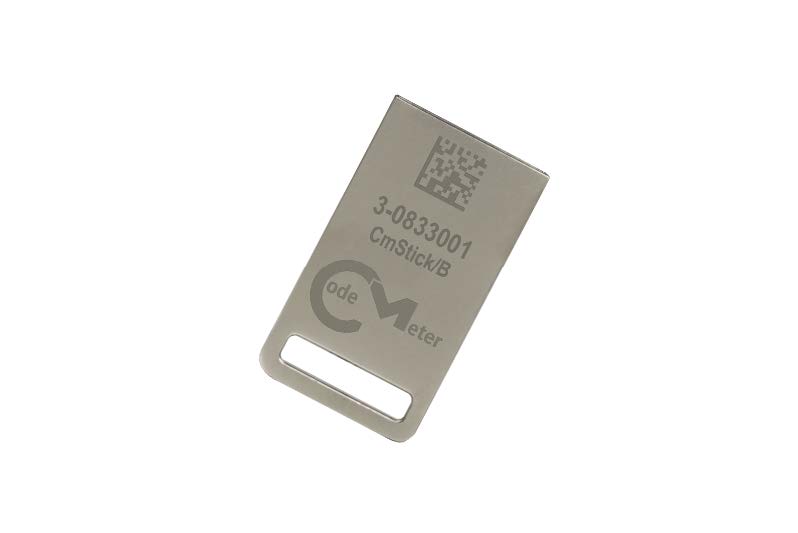

  • Axis Studio License Dongle（sold separately if not included）: Needs to be plugged into the computer in order to use the Wibu dongle version of Axis Studio.




Glove Kit

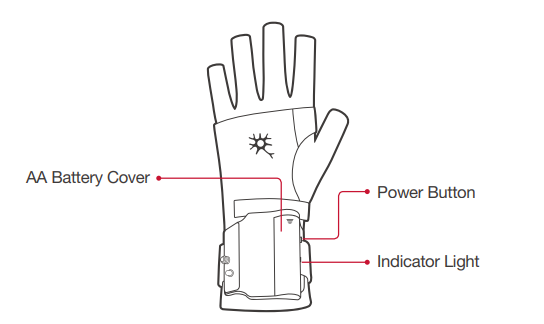

PNS gloves : Use PNS gloves for finger tracking.  When using the glove, you do not need to use the hand sensors that come with the body kit.
