Body Dimension Profile

Axis Studio allows users to input their own body size dimensions if the provided default body size presets do not apply.

NOTE: Prior to capturing, choose the body size preset that fits the actor‘s body dimension closest
before carrying out the posture calibration. Inertial motion capture accuracy is highly affected by the body segment length of the Avatar.

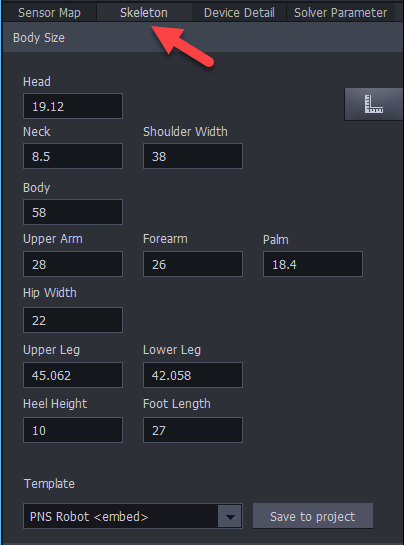

Options to update the avatar body sizing will be found under the Skeleton Tab


Here you will see that Axis Studio is using a default Skeleton for your project. The default Skeleton is called PNS ROBOT, which is using a height of 175cm's. Not all body shapes and sizes will match this skeleton, so we recommend to update the skeleton by using one of our preset skeletons.

When you first create a new project. Users can include preset body dimensions.

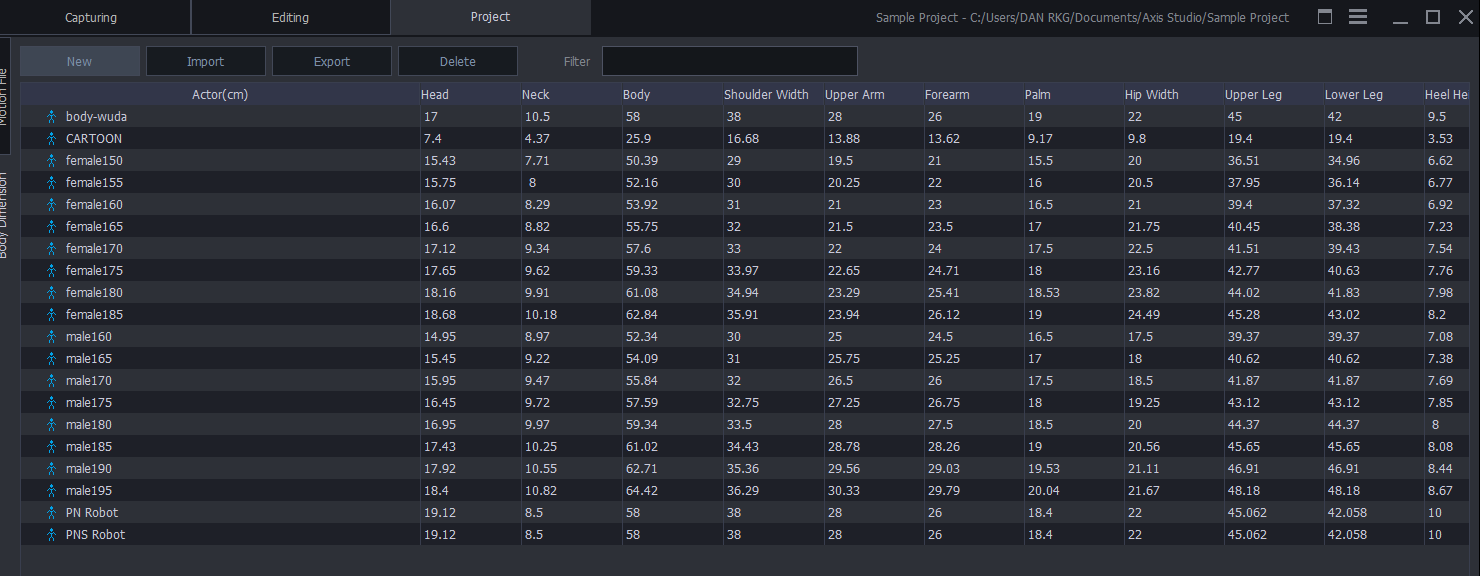

If selected, a list of preset body dimensions will be found under the sub menu Project>Body Dimension. See image below


Custom Body Size

So that the Axis Studio avatar matches your bone posture correctly we ask that you create a custom body size profile. This will help improve the posture accuracy during your real-time capture.

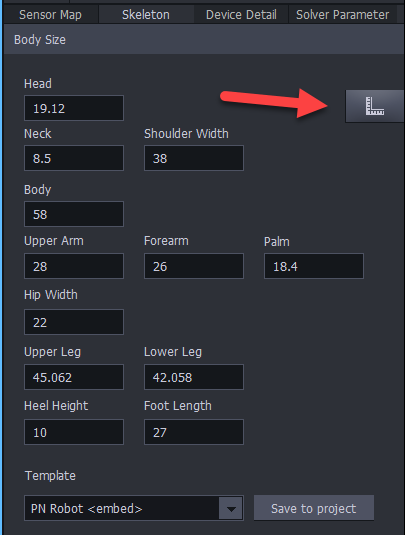

Locate the sizing guide under the Skeleton tab

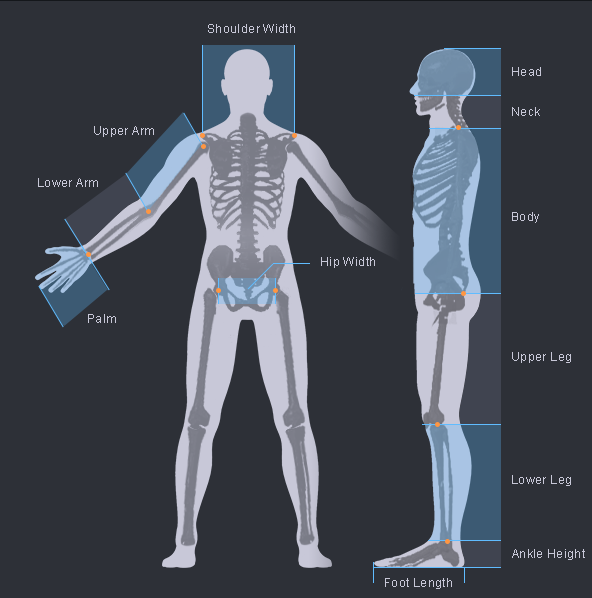

Once opened. the following reference guide will show the points of interest that need to be measured.


Input measurements are CM's


Locate a measuring tape, preferably a soft measuring tape to measure the body

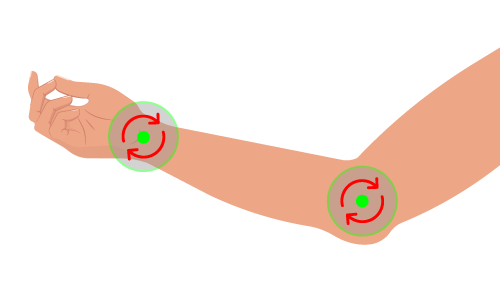

The main task is to measure rotation ends.


Following measuring details:

  • Head:
    •  Measure From the Tip of the head to the ear lobe
    • Ear lobe is more or less where the rotation of the head is found.
  • Neck:
    • Measure from the Line of up lip and earlobe to C7
  • Shoulder Width
    • Left rotation center of shoulder to right rotation center of shoulder.
  • Body
    • C7 to head of femur.
  • Upper Arm
    • Rotation center of shoulders to rotation center of elbow.
  • Forearm
    • Rotation center of elbow to rotation center of wrist.
  • Palm
    • Rotation center of wrist to the top of mid finger.
  • Hip Width
    • Left head of femur to right head of femur.
  • Upper Leg
    • Head of femur to rotation center of knee.
  • Lower Leg
    • Rotation center of knee to ankle bump bones.
  • Heel Height
    • Ankle to the ground. (If you are wearing shoes, this measurement is to the bottom of the shoes.)
  • Foot Length
    • The performers shoes size.
    • If the performer is barefoot, measure the foot size.
