Introduction

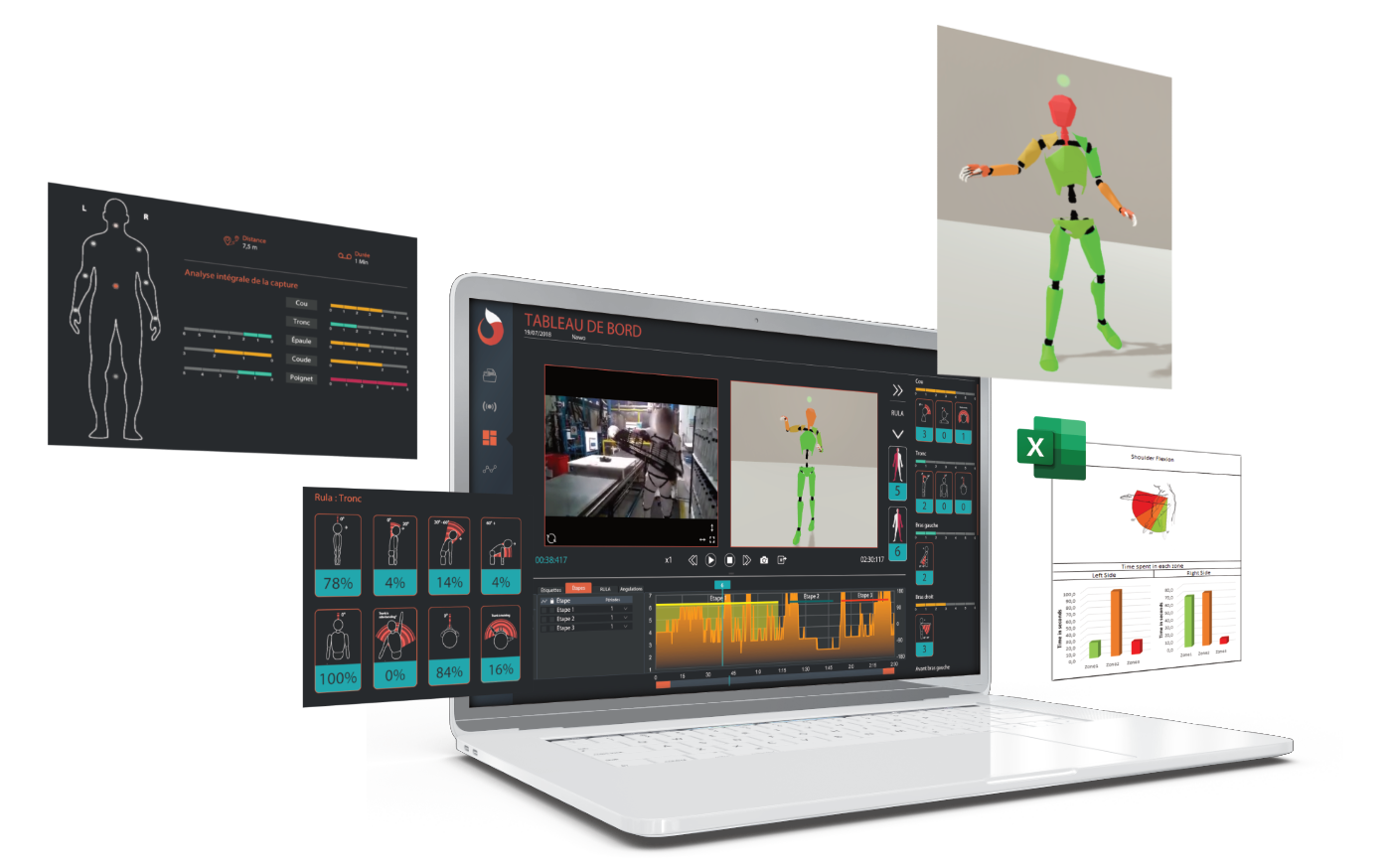

Nawo Live is a ergonomic diagnostic tool is an MSD risk assessment tool that uses the principle of Ergo Simulation. With the support of Perception Neuron hardware, users can now capture real-time data and make on the spot assesments. The following article will provide details on setting up Axis Studio with Naw Live.
For questions on Nawo Live please visit the following website for details
Ergonomic analysis solution to indentify MSDs - Nawo Solution (nawo-solution.com)
AXIS STUDIO SETUP
After connecting the Perception Neuron hardware we'll need to stream BVH data. To enable BVH stream from Axis Studio go to Main menu --> Settings --> BVH Broadcasting
BVH Capture - Enable
Skeleton : Axis Legacy
Protocol:
TCP Enable
Local Address 127.0.0.1:7001
NAWO LIVE
The integration with NAWO is instantaneous. Simply make sure Axis Studio is setup properly and then run NAWO LIVE. Once NAWO LIVE is running, you'll first see a Perception Neuron robot in the viewport. If the connection is successful, the PN robot will reflect the movement of the performer. If you have trouble where there is no movement, we suggest that you review Anti-Virus configuration as the port number 7001 could be blocked.
