This feature requires a license in order to activate. Timecode is only supported by PN Studio. Please contact our support team for activation firstname.lastname@example.org
There are a total two TimeCode references Axis Studio uses.
- Frame Rate (Mocap Device)
- Requires and external timecode generator attached to the transceiver
- Frame Rate (PC Timecode)
- Utilizes the computers timeclock to generate TimeCode.
1) Frame Rate (Mocap Device)

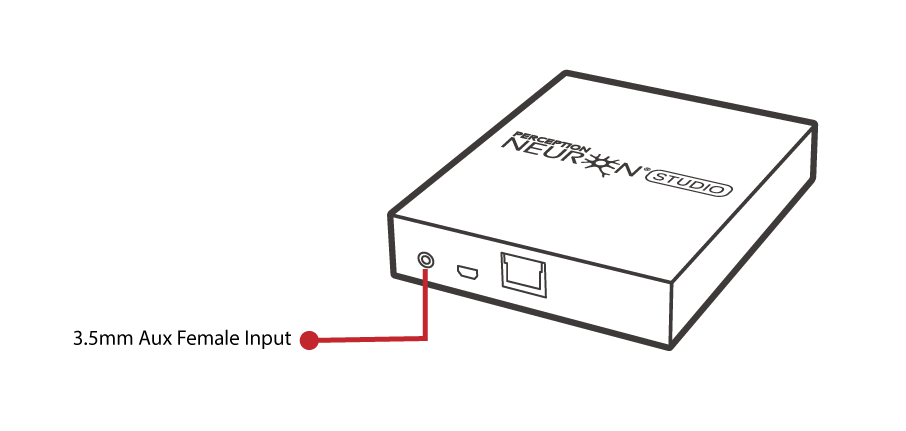

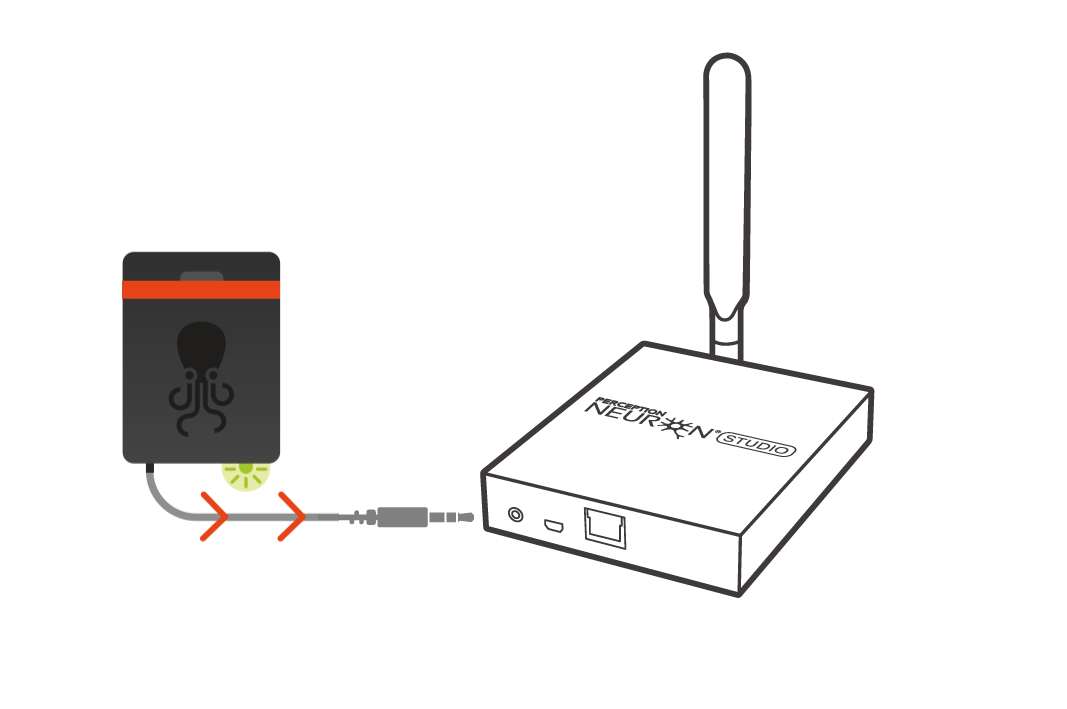

Through the transceiver's 3.5mm female input, users can attach a timecode generator. TimeCode information will then be captured during the recording.
We recommend using the TENTACLE SYNC E device shown below.
For documentation and usage please click on the following link to read the product manual here
Setup and Install Mobile Application

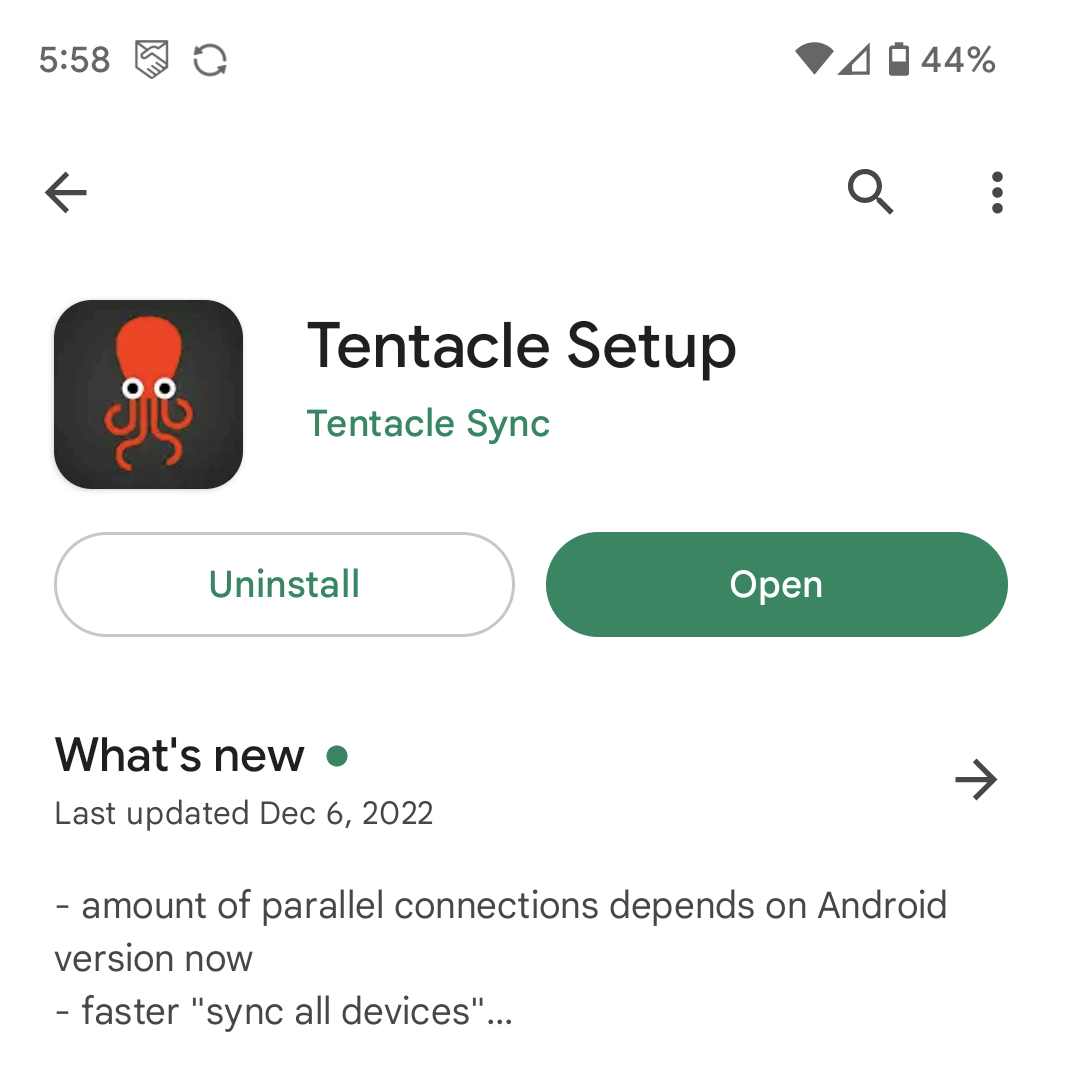

Locate the TENTACLE SETUP mobile application.
Tentacle generates the following SMPTE Standard frame rates: 23,98, 24, 25, 29,97, 29,97
DropFrame and 30 fps. Connect the hardware to your phone using TENTACLE supported app and configure the desired TimeCode first. Ensure that LED light on the tentacle device is flashing green, which indicates its outputing timecode.
Axis Studio Setup

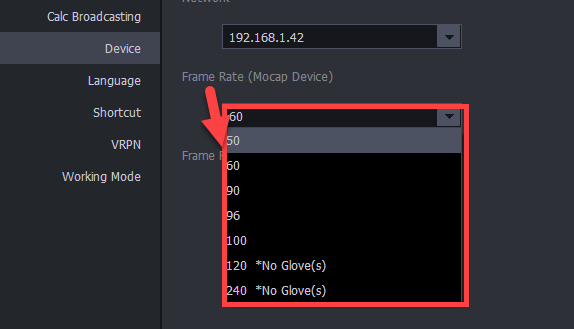

In Axis Studio update the desired timecode. For example, If you are using 30fps in the tentacle hardware, select 60 in the drop down menu.

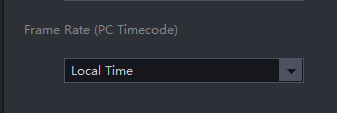

2)Frame Rate (PC Timecode)
Axis Studio can also use NTP for TimeCode. This TimeCode is generated by your computers clock. More information can be found in the WIKIPEDIA.
Only 30FPS can be selected

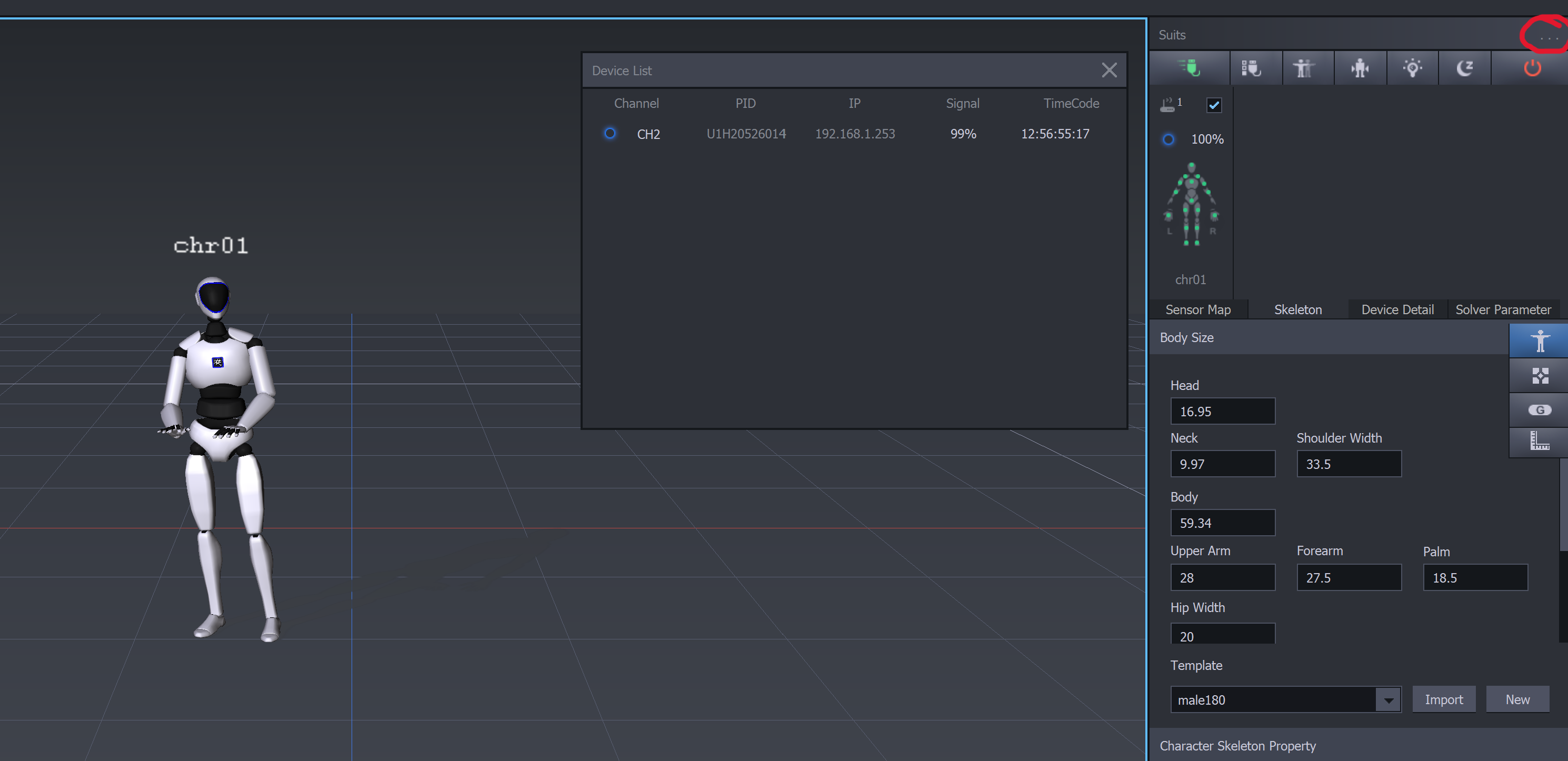

You can view the TimeCode in the Transceiver menu by clicking on the 3 dots in the top right corner of the suits menu.
