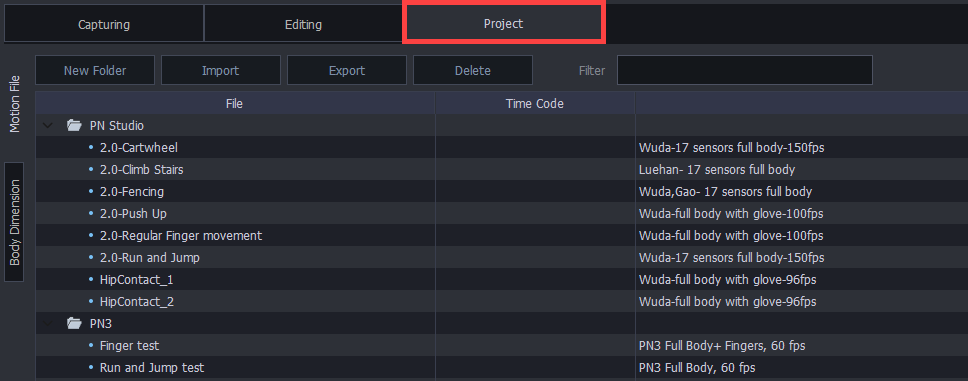

In the following workspace, users can manage motion capture takes and manage Body Dimension profiles. When reviewing the layout of the Project Workspace, there are two subcategories located on the left side, they are Body Dimension and Motion File.
These panels represent the same folders located in the local project folder on your computer. See the following image showcasing the folders under the Sample Project folder.
Motion File View
When selecting the Motion File tab, takes can be renamed or deleted, right-click on the files to view options. Users can Export or Import captured data from this same view window, MBX file extension is associated with Axis Studio. Create new folders to organize large amounts of capture files in this project to optimize file management.
Batch Export
To export multiple takes at a time, use the Batch Export option. Batch export is only supported through the Project Workspace. In order to do so, select multiple takes and right-click to view options to select Export. Select Export
In the Export Settings window, toggle the takes you want to include in the Export. Update your File type and skeleton settings and choose Export.
Body Dimension View
The following view shows all the body dimensions included in the current project. Manage Body Dimension profiles that will be used in the working project.
Add and Delete a Body Dimension file from this view. Import and Export a Body Dimension files to other projects. The Body Dimension file is an *. xml file which includes the body dimension name and length for each body segment. You can copy and paste the *. xml body dimension file to any folder on your windows machine. Body dimension files will need to be saved in the projects ProjectName/BodySize folder in order for Axis Studio to read the file.
