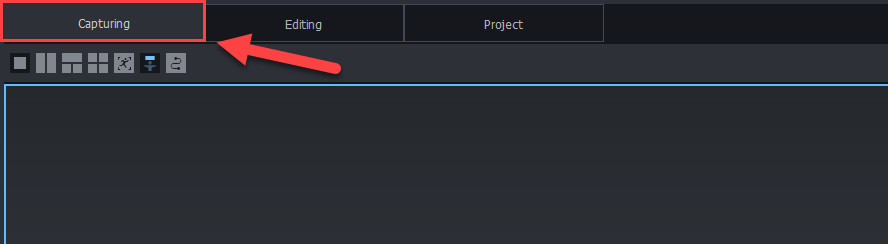

Viewport
- This is where you will be seeing your character.
- To navigate, use left click to pan, middle mouse to orbit, and scroll the middle mouse button to zoom.
There are a few buttons on the top bar.
- Multi panel views: change the layout.
- Active Follow Cam: allows you to follow your actor without manually moving the camera in the Viewport.
- Toggle Avatar Name: toggle on and off the character’s name display in the Viewport.

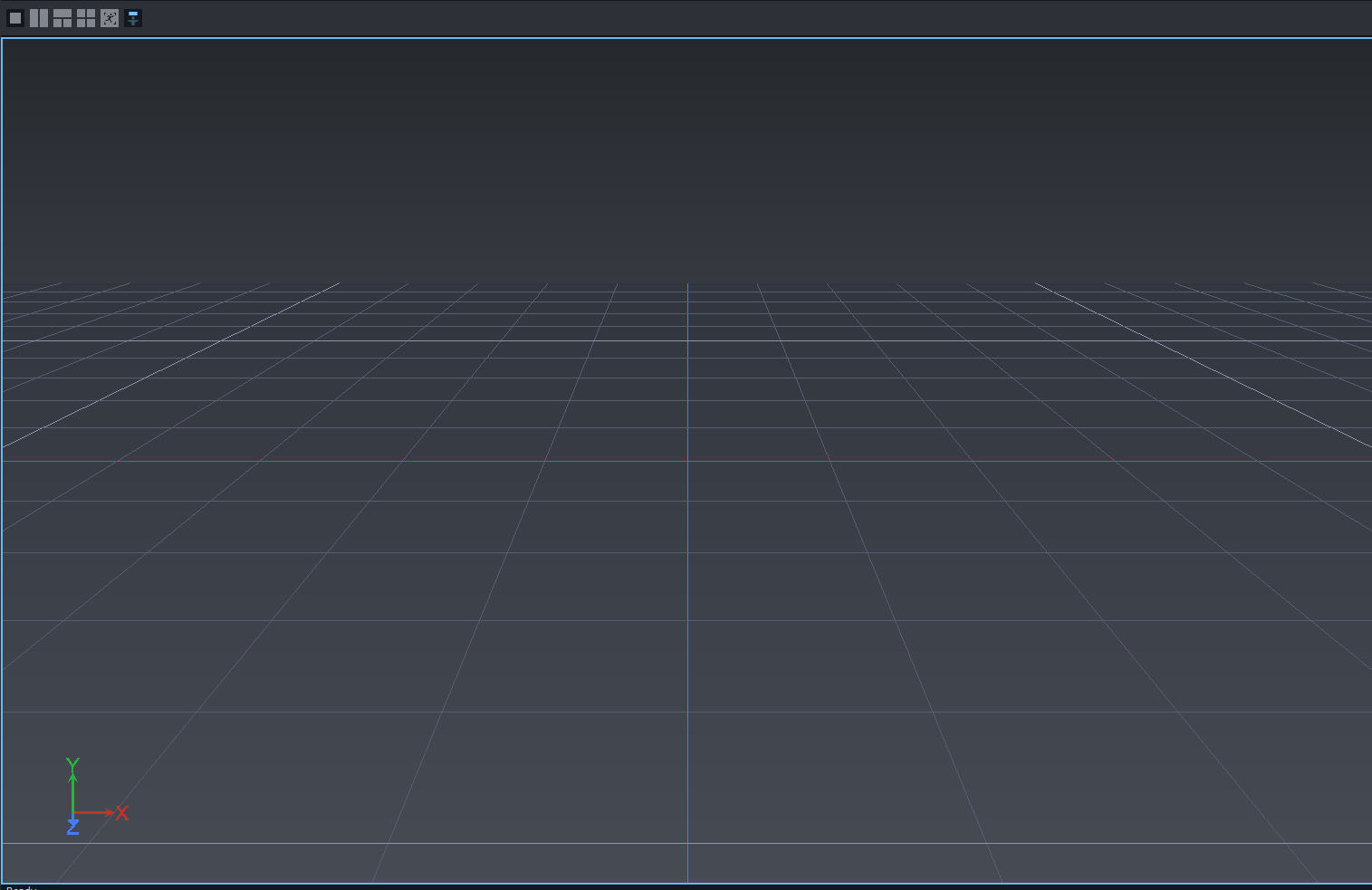

You can change the axis from z up to y up by clicking the axis orientation diagram in the lower left corner
Suits window

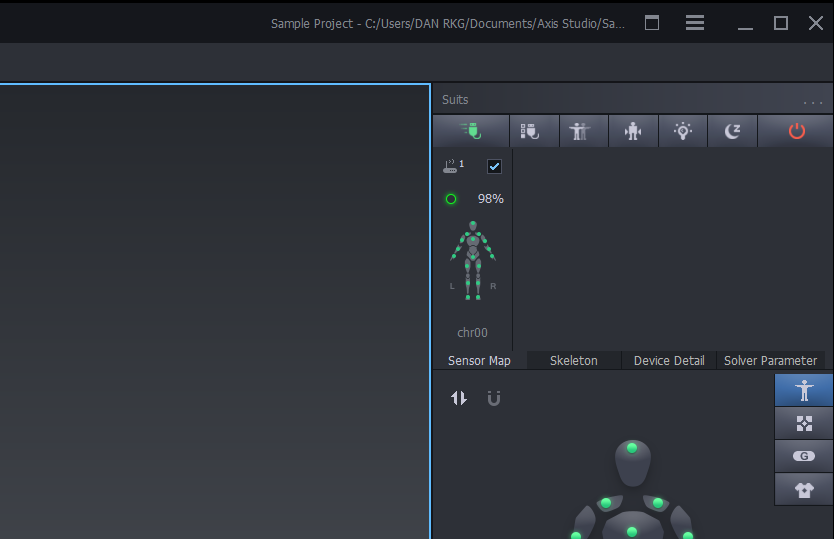

- Connect with Wizard: this will walk you through the setup process. We recommend going through this process before every recording session.
- Quick connect: once you have connected with the wizard, you can use this button to quickly connect the suits as needed during a recording session.
- Calibration for all: this will run through the full posture calibration for all suits connected to the software.
- Anti-mag: only use this when you are in an environment with a lot of magnetic interference. It lowers the reliance on the sensor’s magnetometer.
- Resume Original Posture: use this to quickly recalibrate actors between takes. Make sure the actor is facing the same direction they did during initial calibration. This process resets the sensors to the last calibration.
- LED on/off: this turns the LEDs on the sensors on and off. This extends battery life and makes it easier to hide the sensors under clothing.
- Sleep: use this button to put sensors to sleep when taking breaks.
- Power off: use the power button to turn all the sensors off.
Sensor Map Tab

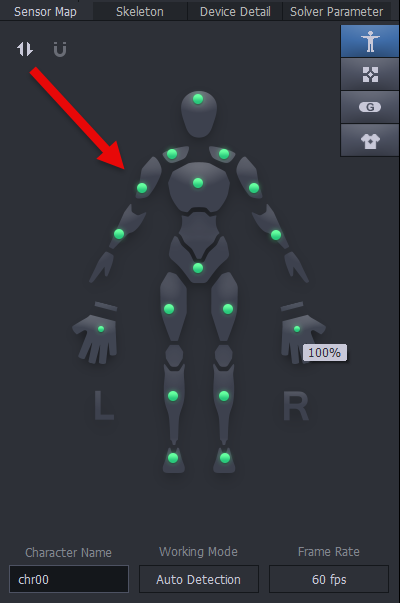

Sensor signal strength (round dot)
-
Green is good
-
Yellow is medium
-
Red is bad
-
Grey is no sensor linked
Magnetic environment (Square dot)
- Green is good
- Yellow is poor
- Red is severe
- Grey is no sensor linked or in Anti-mag Mode

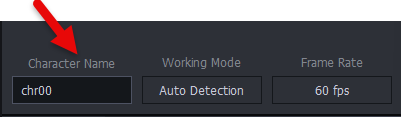

You can customize the Character Name in the Character Name option box in the lower left corner.
In the lower right corner are the motion capture mode and the number of capture frames.
Body Dimensions Tab

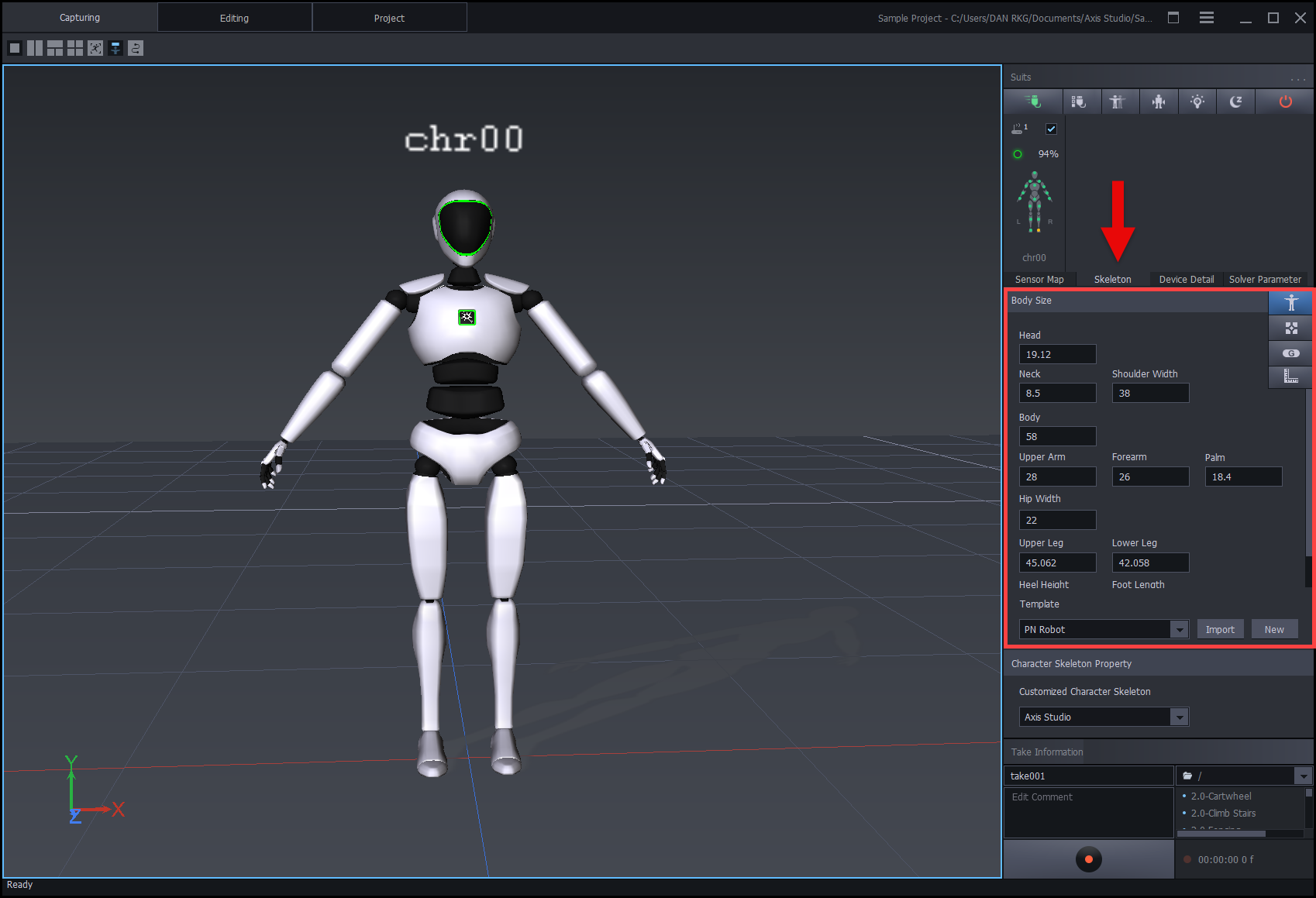

This is where you can adjust the body dimensions of your character.
- Start by choosing a Template, this is usually sufficient, but for better accuracy, more adjustments may be needed.
- The closer the dimensions of the characters are to the dimensions of your actor, the more accurate your results will be.
- Click the Ruler button for guidelines of how to measure dimensions.
Device Detail

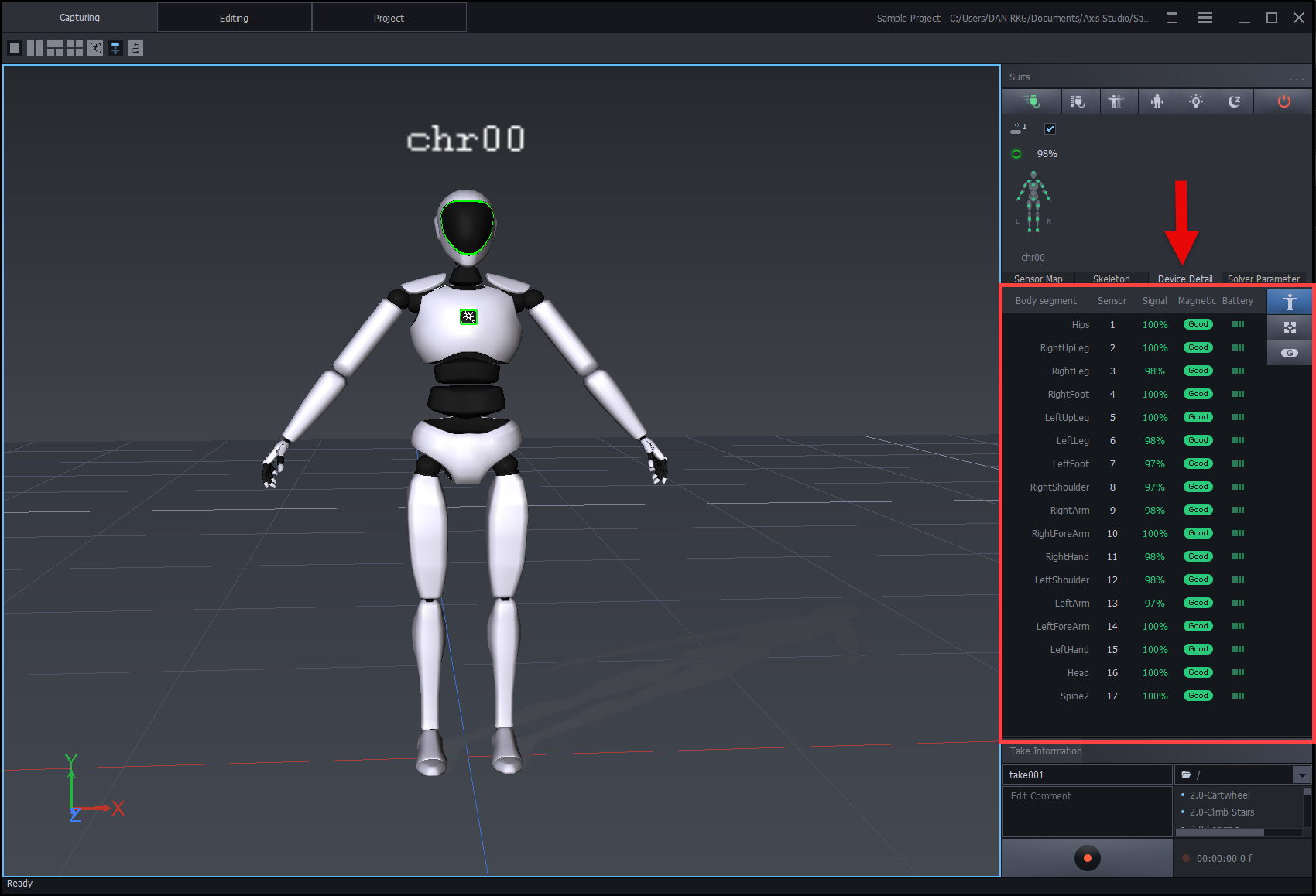

Pay attention to this tab during calibration and recording as it will let you know if any of your sensors are having problems. The Battery, Magnetic, and Signal columns should stay green the majority of the time. If any of them are red for more than a few seconds, it may be time to troubleshoot.
- Battery in the red just means low battery, so charging the sensors should fix that.
- Red Magnetic means a lot of magnetic interference, you may need to check your environment and/or run a Magnetic Calibration on the affected sensors.
- Red Signal means bad connection, this can usually be fixed by a dedicated router or changing channels.
Take information.

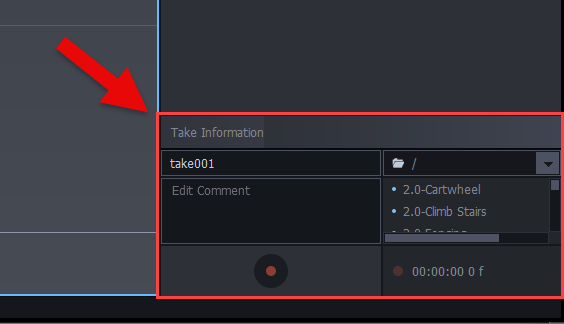

The Take Information window will help you keep track of your takes.
- You can name the takes, add comments, and view your other takes.
- At the bottom of the window is the Record button, press it to begin and end recording.
- Next to the Record button is a Clock that will track your time.
