Packaging a Project

Packaging a project

You can package a project to drive animation outside the editor in a windows .exe application.

1. Follow steps listed above to get animation flowing into unreal.
2. Have data streaming into unreal and your character being animated in the editor.

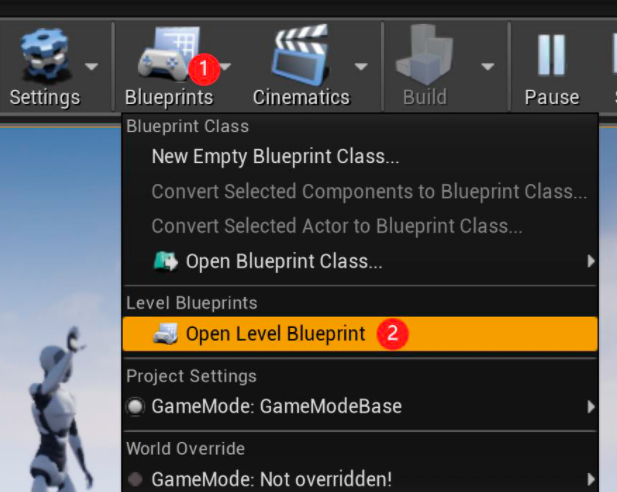

3. Open level blueprint

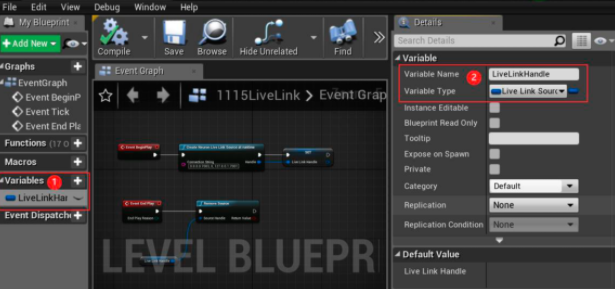

4. Create a new variable called “LiveLinkHandle” where the variable type is Live Link Source Handle.
5. On the Level Blueprint space

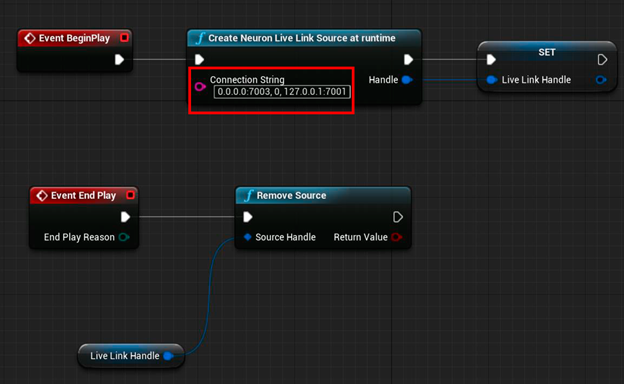

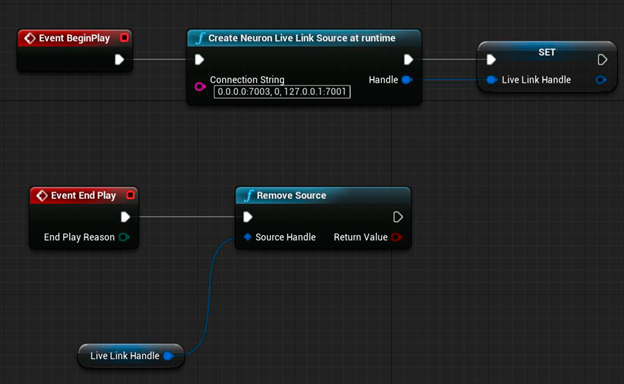

   • Create an “On Event Begin Play” node, output a “create Neuron Live Link Source at Runtime” node and Set the “Live Link Handle” Variable that you created.
   • Also add an “on Event End play” node and output a “remove Source” node with the “get Live Link Handle” as a source handle pin
6. To fill in the connection string pin from the from the  “Neuron Live Link Source at Runtime Node”

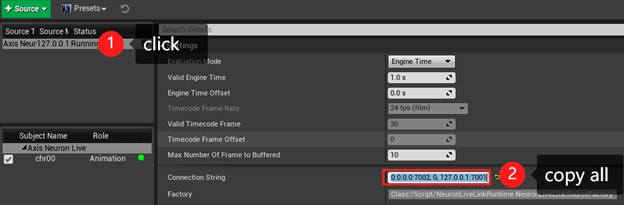

   • Navigate to the LiveLink connection window
   • Select the Axis Neuron live Subject name and expand the settings section
   • Locate Connection string and copy the string.
   • Paste string into the Create "Neuron Live Link Source at Runtime Node"
7. Compile, Save and package your Project.
